Small Media Bead Mills (SDM)
For Bead Milling Applications
A Hybrid Design
The SDM line from Union Process is a hybrid design that couples the grinding features of a batch Attritor with the performance features of a bead mill.
The Advantages of a Batch Attritor…
SDM Attritors share many of the same advantages of batch Attritors including:
- No expensive shaft seals to maintain
- Simple operation
- Energy efficient
- No premixing requirement
- Minimum maintenance required
- Rugged construction
- Material can be inspected and additions can be made at any time during the grinding cycle
- Compact design
- No special foundation needed
…with the Added Features Necessary to Accomplish Bead Milling
Additional advantages of the SDM design are:
- Specially designed shaft and Delta Discs configured to accommodate small media milling (using mini media from 0.25 to 3mm)
- High shaft speed (from 400 to 4000 RPM) to energize small media
Laboratory Models
HDDM-01
- Designed for small media from .10mm to 2mm
- Features a mechanical drive or an electronic variable speed drive system
- Runs at RPMs from 1000 to 4200
- Optional side discharge valve and/or bottom plug valve (both available for stainless steel tanks only)
- Can be purchased as a combination model with HD-01 (referred to as HD-01/HDDM)
SDM-5 and SDM-1
- Designed for small media from .25mm to 3mm
- Features a mechanical drive or an electronic variable speed drive system
- Runs at RPMs from 300 to 2000
- Includes discharge valve and media retaining screen

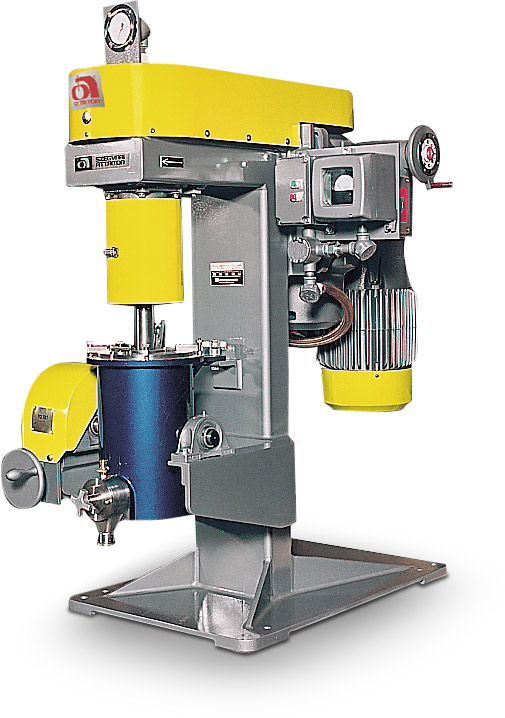

SDM-1
Lab Machines
| MODEL | HDDM-01 750cc | HDDM-10 1400cc | SDM-5 | SDM-1 |
|---|---|---|---|---|
| Tank Capacity | 750cc | 1400cc | 1.3 gal | 2.9 gal |
| Slurry Capacity | 125-175cc | 250-350cc | 0.37 gal | 0.6-0.8 gal |
| Media Volume | 280cc | 560cc | 0.60 gal | 1.3 gal |
| HP | 2-Jan | 2-Jan | 3 | 5 |
| Height | 39″ | 39″ | 46″ | 60″ |
| Floor Space (W x D) | 17″x38″ | 17″x38″ | 28″x48″ | 32″x54″ |
| Machine Wt (lbs) | 240 | 240 | 700 | 1600 |
| Approximate Operating Wt (lbs) | 250 | 260 | 750 | 1700 |
Equipment can be built to CE specifications, if required.
Production Models
Standard Features
- Tank tilts for easy cleaning
- Includes side slurry discharge with media retaining screen
- Tank jacketed for efficient cooling
- Bottom media discharge valve
Accessories/Options
Tank Options
Stainless Steel, Tefzel?-coated stainless steel, polyurethane, alumina
(zirconium oxide, silicon nitride and silicon carbide – HDDM-01 lab model only)
Agitator Disc Options
Hardened tool steel, hardened stainless steel, plastic, zirconium oxide
Torque Meter
Monitors precise energy consumption which is used for determining
grinding time and for added quality control

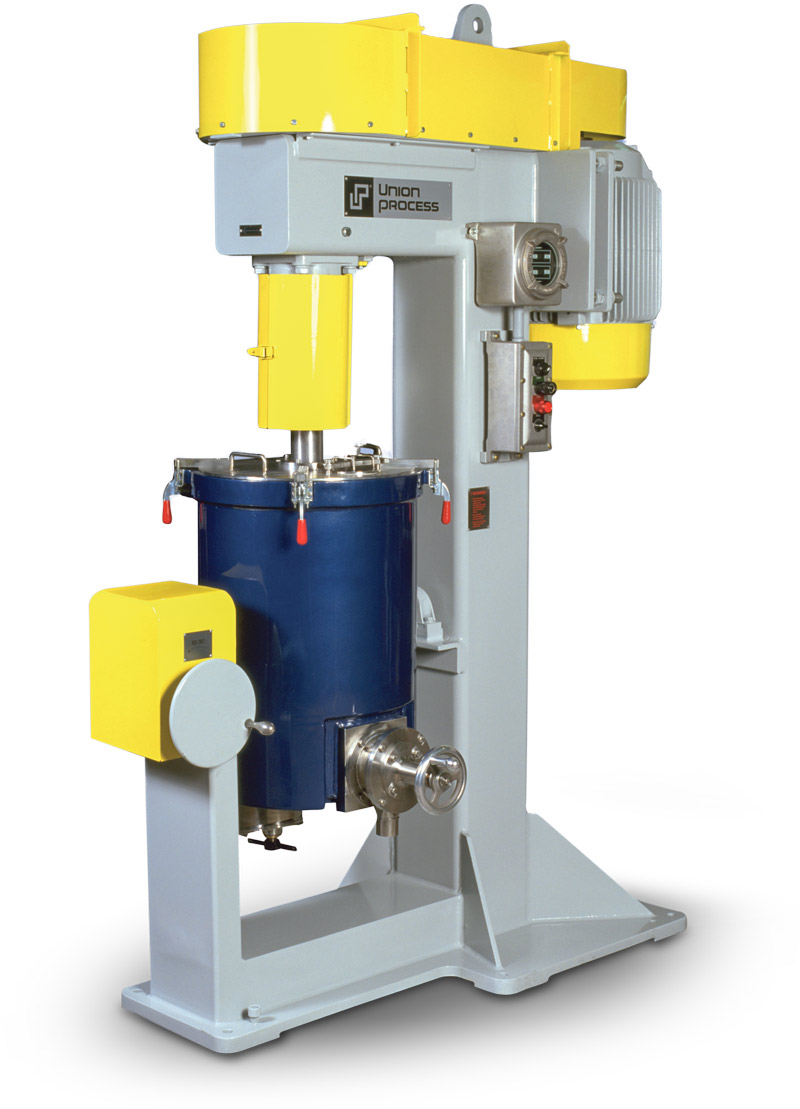

SDM-10
Production Machines
| MODEL | SMD-5 | SDM-10 | SDM-15 | SDM-20 | SDM-30 |
|---|---|---|---|---|---|
| Tank Capacity | 14 gal | 28 gal | 42 gal | 61gal | 83 gal |
| Slurry Capacity | 4 gal | 8 gal | 12 gal | 16 gal | 24 gal |
| Media Volume | 6.5 gal | 13 gal | 19.5 gal | 26 gal | 39 gal |
| HP | 15 | 25 | 40 | 50 | 75 |
| Height | 88″ | 91″ | 97″ | 104″ | 110″ |
| Floor Space (W x D) | 36x”65″ | 39″x70″ | 44″x76″ | 48″x78″ | 52″x81″ |
| Machine Wt (lbs) | 2600 | 3700 | 4100 | 5000 | 6200 |
| Approximate Operating Wt (lbs) | 2950 | 4200 | 5050 | 6300 | 8100 |
